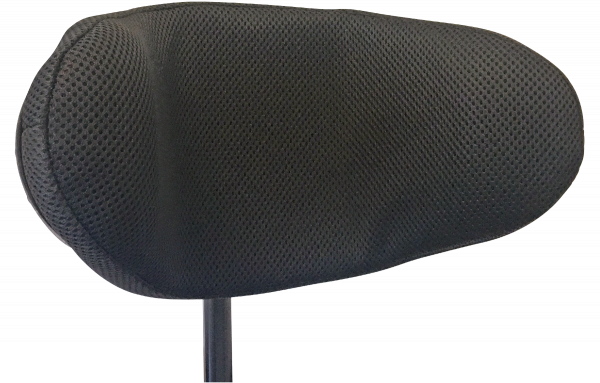

Head support A with forehead strap
Excellent for persons with low head stability and problems with balance, or persons who need an upright head posture, e.g. for better breathing.
| Pos. | Description | Fabric | Unit | Item no. | Price | |
|---|---|---|---|---|---|---|
| Head support A with head band | 3D | Piece | 82566 | €323.00 |
|
|
| Head support A with head band | Easy Care | Piece | 44970 | €323.00 |
|
| Pos. | Description | Fabric | Depth | Unit | Item no. | Price | |
|---|---|---|---|---|---|---|---|
| Head support A with head band with horizontal bar | 3D | 150 mm | Piece | 87398 | €302.00 |
|
|
| Head support A with head band with horizontal bar | Easy Care | 150 mm | Piece | 87397 | €302.00 |
|
|
| Head support A with head band with horizontal bar | 3D | 250 mm | Piece | 87400 | €332.00 |
|
|
| Head support A with head band with horizontal bar | Easy Care | 250 mm | Piece | 87399 | €332.00 |
|
|
| Head support A with head band with horizontal bar | 3D | 380 mm | Piece | 87402 | €340.00 |
|
|
| Head support A with head band with horizontal bar | Easy Care | 380 mm | Piece | 87401 | €340.00 |
|
| Pos. | Description | Height | Unit | Item no. | Price | |
|---|---|---|---|---|---|---|
1 |
Head support vertical bar with tube | 200 mm | Piece | 41401 | €48.00 |
|
1 |
Head support vertical bar with tube | 350 mm | Piece | 41402 | €48.00 |
|
1 |
Head support vertical bar with tube | 500 mm | Piece | 41403 | €93.00 |
|
2 |
Plast plug round | - | Piece | 20509 | €2.00 |
|
3 |
Latch lever M6x30 | - | Piece | 20282 | €9.00 |
|
| Pos. | Description | Height | Unit | Item no. | Price | |
|---|---|---|---|---|---|---|
| Head support vertical bar | 300 mm | Piece | 92901 | €48.00 |
|

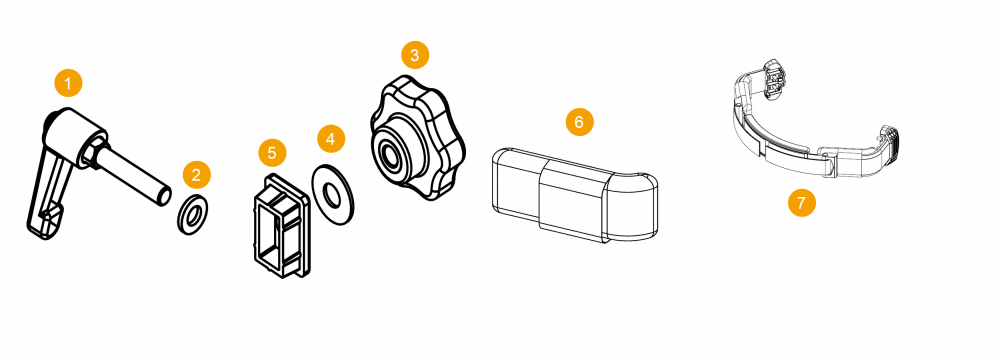

| Pos. | Description | Unit | Item no. | Price | |
|---|---|---|---|---|---|
1 |
Latch lever M6x30 | Piece | 20282 | €9.00 |
|
2 |
Washer M6 | Piece | 20063 | €2.00 |
|
3 |
Starwheel M8 | Piece | 91056 | €9.00 |
|
4 |
Washer D20xd8.4x1.2 mm | Piece | 29305 | €3.00 |
|
5 |
Plug 20x30x11.5 mm | Piece | 20852 | €3.00 |
|
6 |
Extra pad for head support A with head band | Piece | 90271 | €15.00 |
|
7 |
Head band | Piece | 89617 | €120.00 |
|
| Latch lever M6x16 mm | Piece | 20097 | €9.00 |
|
| Pos. | Description | Depth | Unit | Item no. | Price | |
|---|---|---|---|---|---|---|
| Head support horizontal bar | 250 mm | Piece | 20318 | €56.00 |
|
|
| Head support horizontal bar | 380 mm | Piece | 20372 | €73.00 |
|

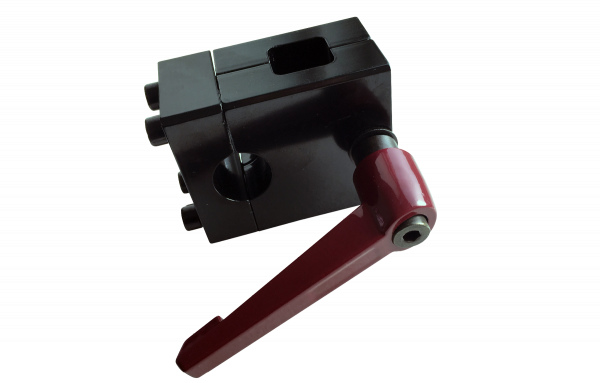

Each head support can be fitted to each Netti wheelchair by using the head support adapter. To adjust the head support in height you need to loosen the red latch lever by turning the lever anticlockwise until you can move the vertical bar up-or downwards. Adjust the vertical bar according to your need and turn the red lever clockwise to fasten the bar again. A solid version of the head support adapter made of aluminium is available. With this you can fix the height with a bolt to avoid unwanted changes in position.
To adjust the head support in depth, loosen the red latch lever of the horizontal tube. Loosen the red latch lever by turning the lever anticlockwise until you can move the horizontal tube front-or backwards. Adjust the horizontal tube according to your need and turn the red lever clockwise to fasten the head support again.
As an additional adjustment you can move the head support free in space. Loosen the red star wheel by turning the lever anticlockwise until you can move the head support upholstery free in space. Adjust the head support according to your need and turn the star wheel clockwise to fasten the tube again.
The head support adapter can be move to the right or left adjusting the positioning of the head support to the user.
3D
Breathable, elastic and durable. The 3D mesh structure enhances the microclimate, ventilates and reduces heat build-up. This strengthens the skin and the resistance of the underlying tissue against internal and external influences, such as pressure and shear. 100% PES (Polyester).
EASY CARE
Durable, breathable, elastic, wipeable and hygienic. PES (Polyester) + PU.
Does it fit my Netti?
If you do not know, which Netti you have, please check the serial number.
You will find the serial no. on a label at the lower cross bar. It writes xxx-xxxxxx.
The first 3 digits of the serial number will help you determine which Netti wheelchair you have.
Please check our FAQ for a list of all serialnumbers and Netti model.
